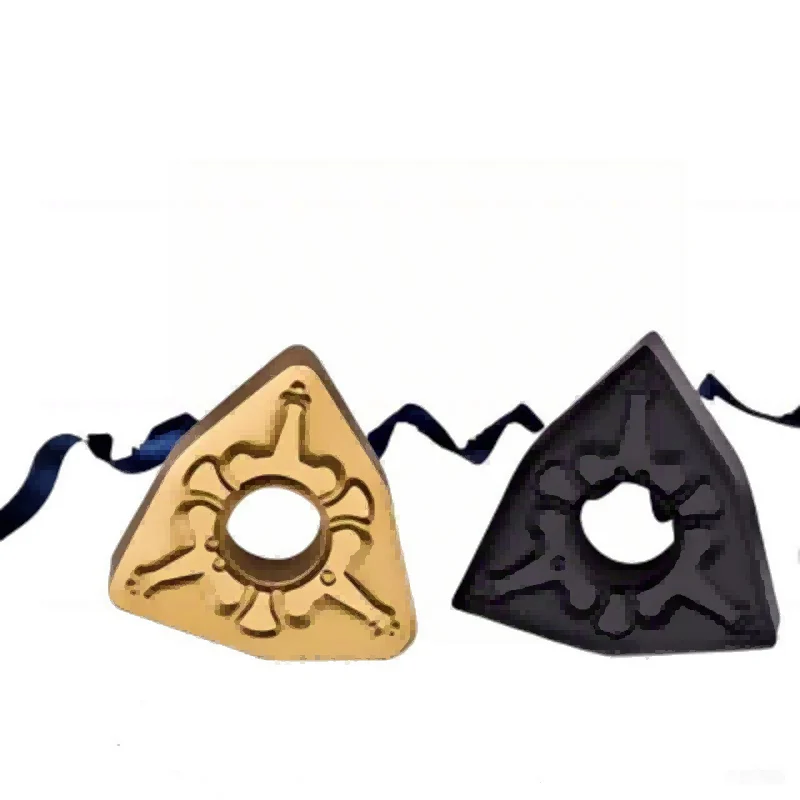

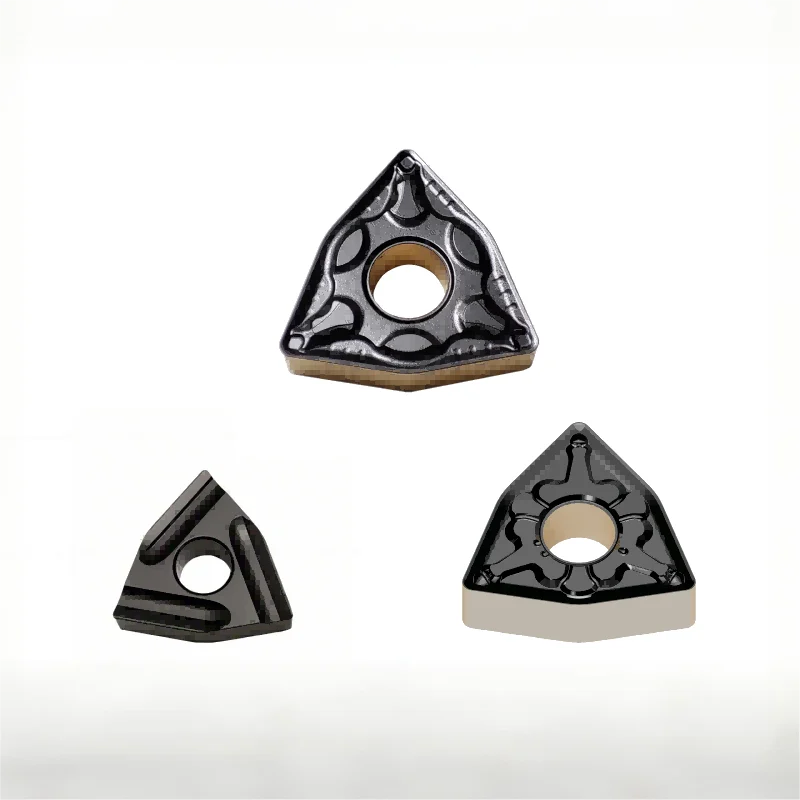

Key Features Specifications Code I.C. (mm) Thickness (S) mm Hole (d) mm Radius (R) mm WNMG060408 9.525 4.76 3.81 0.8 WNMG060412 9.525 4.76 3.81 1.2 WNMG080404 12.7 4.76 5.16 0.4 WNMG080408 12.7 4.76 5.16 0.8 WNMG080412 12.7 4.76 5.16 1.2…

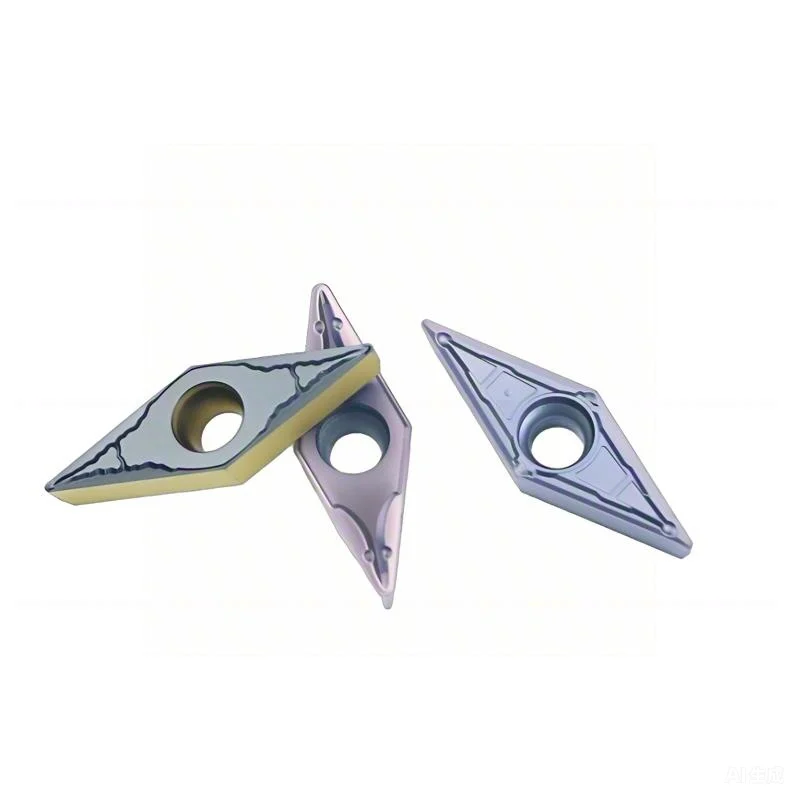

Key Features Specifications Code I.C. (mm) Thickness (S) mm Hole (d) mm Radius (R) mm VCMT(VCGT)110304 6.35 3.18 2.8 0.4 VCMT(VCGT)110308 6.35 3.18 2.8 0.8 VCMT(VCGT)160404 9.525 4.76 4.4 0.4 VCMT(VCGT)160408 9.525 4.76 4.4 0.8 VBMT(VBGT)160404 9.525 4.76 4.4 0.4…

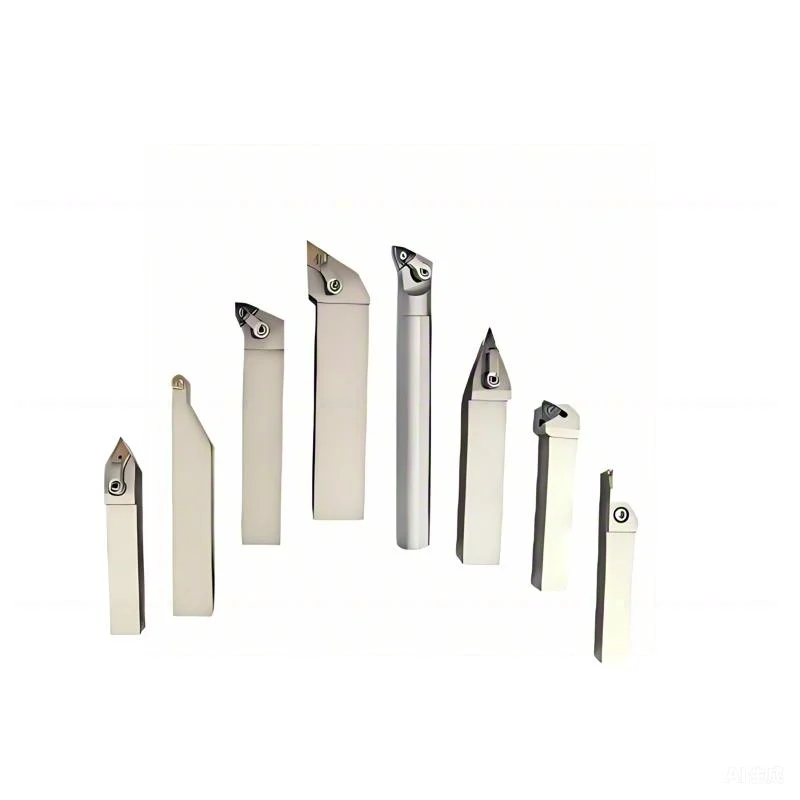

Key Features Available Specifications Holder Model Diameter Suitable Inserts S16K-SDUCL11 16 mm DCMT11 / DCGT11 S19.05K-SDUCL1 19.05 mm DCMT11 / DCGT11 S20K-SDUCL11 20 mm DCMT11 / DCGT11 S22K-SDUCL11 22 mm DCMT11 / DCGT11 S25K-SDUCL11 25 mm DCMT11 / DCGT11 S25.4K-SDUCL11…

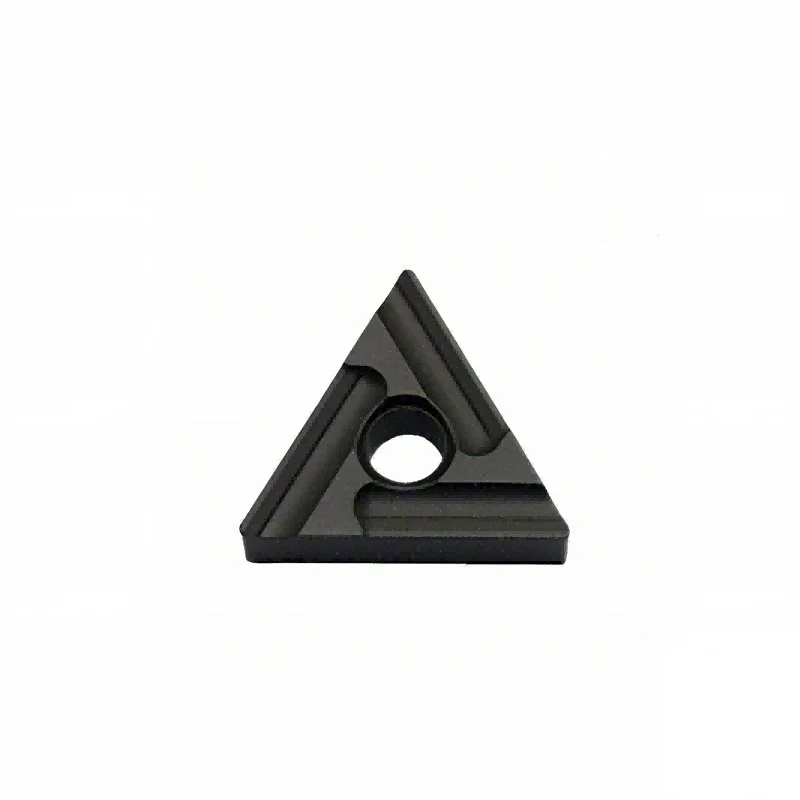

Key Features Specifications TNMG160404R / L TNMG160408R / L TNMG160412R / L Understanding the TNMG Code Example: TNMG160404R Applications Suitable for: Performance: Additional Options We offer TNMG inserts with different geometries for finishing, medium cutting, and roughing. Matching tool holders…

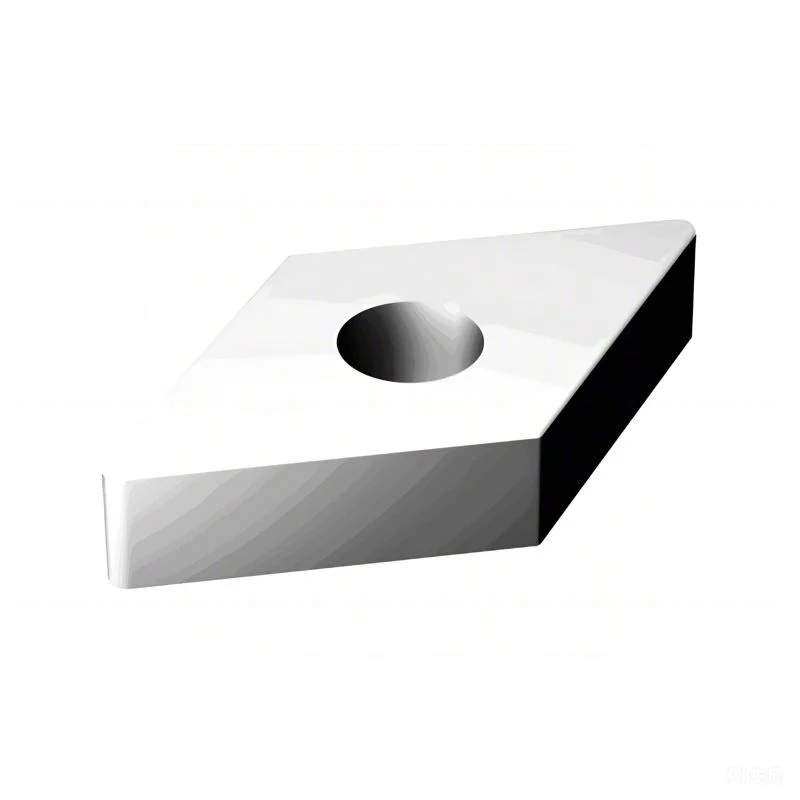

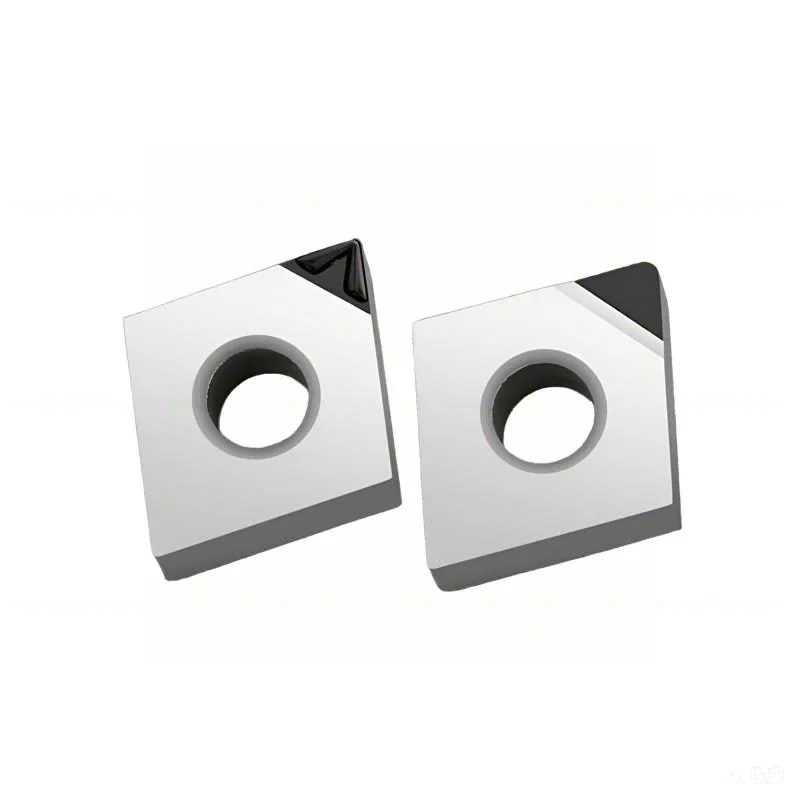

Key Benefits: View All Ceramic Inserts–加入链接 Key Benefits: View All PCBN Inserts–加入链接 Key Benefits: View All PCD Inserts –加入链接 Performance Comparison Table Feature / Material Type Ceramic Inserts PCBN Inserts Material Composition SiC whisker-reinforced ceramic Polycrystalline Cubic Boron Nitride Hardness…

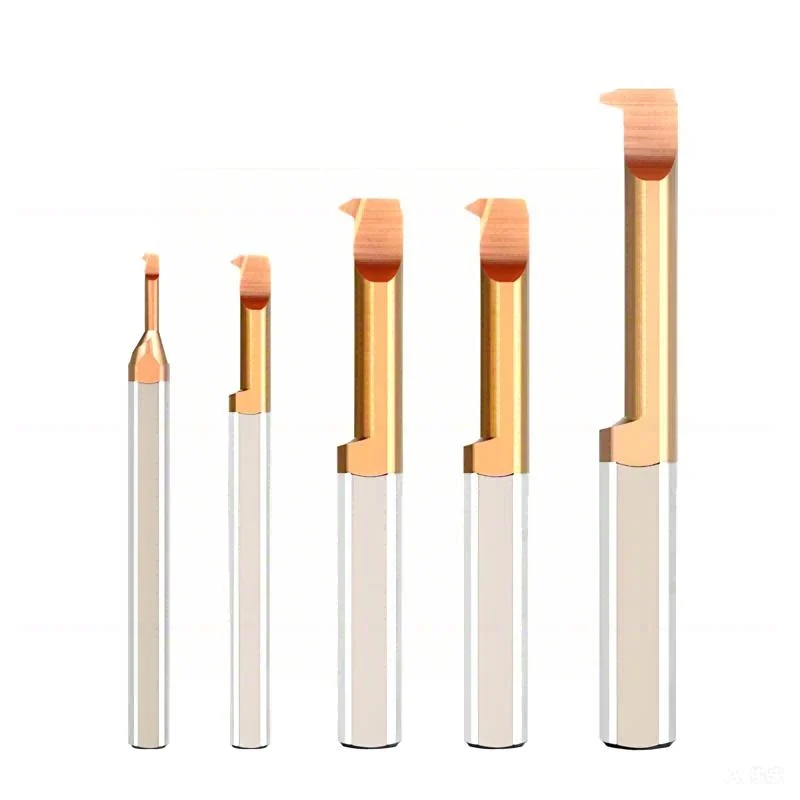

Key Features Specifications Model Name Meaning – Side-Fixed Small-Diameter Boring Tools MTR – General Purpose Boring Bars MPR – Profiling Boring Bars MXR – Back Turning Bars MUR – Profiling & 90° Face Cutting Bars MQR – Profiling Boring Bars…

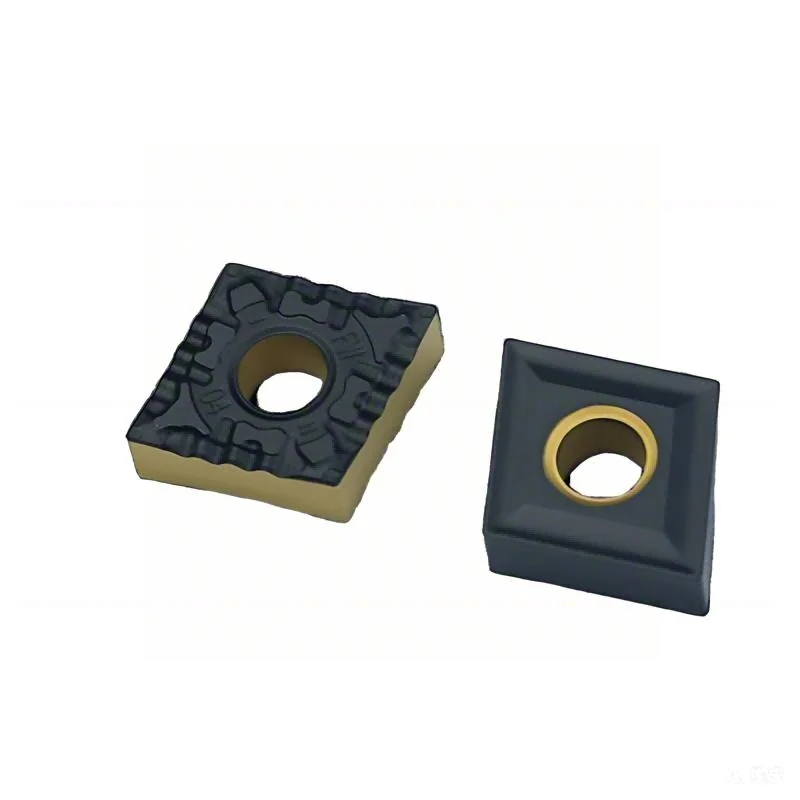

Key Benefits Specifications Code ΦI.C (mm) S (mm) Φd (mm) R (mm) CNMG90304 9.525 3.18 3.81 0.4 CNMG90308 9.525 3.18 3.81 0.8 CNMG120404 12.7 4.76 5.16 0.4 CNMG120408 12.7 4.76 5.16 0.8 CNMG120412 12.7 4.76 5.16 1.2 CNMG160608 15.875 6.35…
Key Features Specifications RNGN Series IOS/ANSI I.C. (mm/in) Thickness (mm/in) RNGN 0903 / RNGN 32 9.525 / 3/8″ 3.18 / 1/8″ RNGN 0904 / RNGN 33 9.525 / 3/8″ 4.76 / 3/16″ RNGN 1204 / RNGN 43 12.7 / 1/2″…

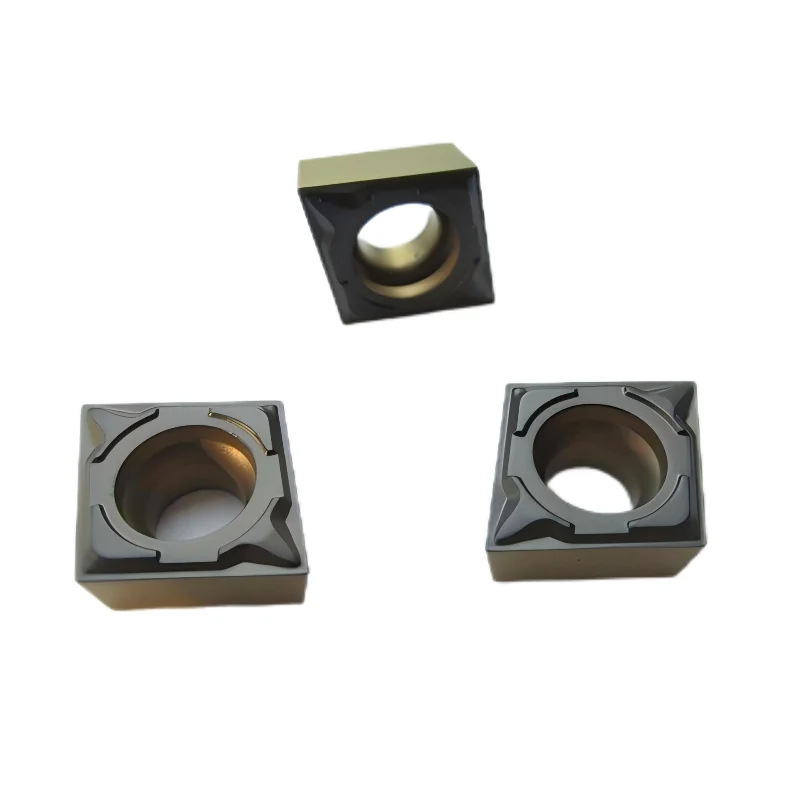

Key Benefits Specifications – CCMT Inserts Type I.C. (mm) Thickness (S) mm Hole (d) mm Radius (R) mm Relief Angle (α) CCMT060202 6.35 2.38 2.8 0.2 7° CCMT060204 6.35 2.38 2.8 0.4 7° CCMT060208 6.35 2.38 2.8 0.4 7° CCMT09T302…
Key Features Applications Industries Served: Suitable Materials: Available Shapes & Specifications Model Inch Code I.C. (mm) Thickness (S) mm Hole (d) mm Radius (R) mm CNMG120404-BTM CNMG431 12.7 4.76 5.16 0.4 CNMG120408-BTM CNMG432 12.7 4.76 5.16 0.8 CNMG120412-BTM CNMG433 12.7…
