Key Benefits
- Complete specifications to meet various turning needs
- CVD & PVD coatings for enhanced performance in steel machining
- Optimized cutting edge for smooth, efficient cuts
- High surface finish for superior quality results
- Chip-breaking groove for reliable chip evacuation
- Covers 99% of turning requirements in common applications

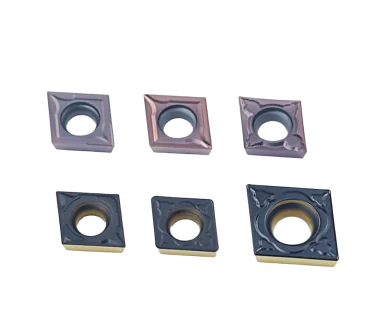

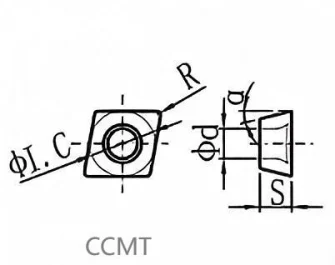

Specifications – CCMT Inserts
| Type | I.C. (mm) | Thickness (S) mm | Hole (d) mm | Radius (R) mm | Relief Angle (α) |
| CCMT060202 | 6.35 | 2.38 | 2.8 | 0.2 | 7° |
| CCMT060204 | 6.35 | 2.38 | 2.8 | 0.4 | 7° |
| CCMT060208 | 6.35 | 2.38 | 2.8 | 0.4 | 7° |
| CCMT09T302 | 9.525 | 3.97 | 4.4 | 0.2 | 7° |
| CCMT09T304 | 9.525 | 3.97 | 4.4 | 0.4 | 7° |
| CCMT09T308 | 9.525 | 3.97 | 4.4 | 0.8 | 7° |
| CCMT120404 | 12.7 | 4.76 | 5.5 | 0.4 | 7° |
| CCMT120408 | 12.7 | 4.76 | 5.5 | 0.4 | 7° |
Other Positive Turning Inserts
We also supply a full range of positive turning inserts to suit your CNC turning needs:
- DCMT Series (for precision profiling)
- SCMT Series (high-strength edge for interrupted cuts)
- TCMT Series (multi-purpose turning)
- VBMT & VCMT Series (for fine finishing and profiling)
(See our complete product catalog for dimensions and grades.)
Application & Advantages
- Machining steel, stainless steel, and cast iron
- Suitable for roughing, semi-finishing, and finishing
- Excellent chip evacuation for stable cutting performance
- Flexible to cover 99% of common turning applications
- High hardness and wear resistance for extended tool life
