The special groove design and edge treatment make the cutting more brisk and smooth.
The chip-remove is smoother.
P20A shining yellow color
P20-P30, K20-K30, M20-M30
P20A is Ultra-fine TiALN-based nano-coating, adding rare elements for better wear resistance and high temperature resistance, The overall performance is significantly improved.
Thin PVD coating, sharp edge, fine crystal Granular tungsten carbide-based cemented carbide has high hardness and strong toughness.
It has made special surface treatment technology before coating to removes harmful stress while improving the surface finish
P20 shining yellow color
P20-P30, K20-K30, M20-M30
This face milling inserts is PVD coated carbide grade, Use for a variety of stainless steel finishing and semifinishing at medium to cutting speed. When need excellent edge strength and high surface quality, provide the perfect ride cutting. A high heat and shock-resistance. Suitable for light interrupted cuts
Cutting parameters:
P For steel processing:Cutting Speed:VC=160(110-240)
M for stainless steel processing, cutting speed: VC120（80-200） Fz0.12（0.05-0.2）
| Type | 尺寸 Dimension（mm） | ||||
| I.C | S | a | R | Φd | |
| SOMT050204-Z | 4.9 | 2.38 | 15 | 0.4 | 2.2 |
| SOMT060204-Z | 5.7 | 2.4 | 12.5 | 0.4 | 2.6 |

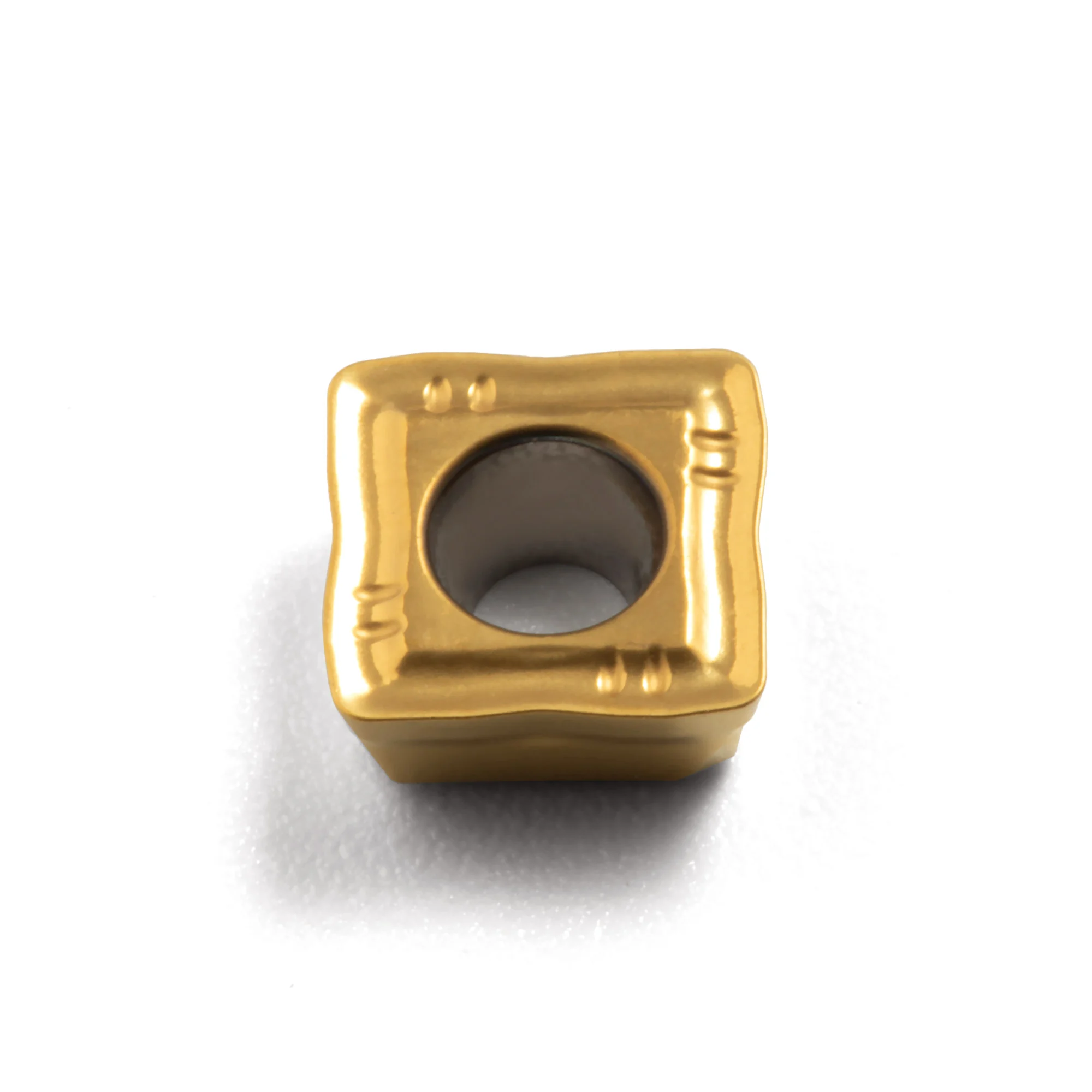

| SOMT070306-Z | 6.8 | 2.8 | 12 | 0.6 | 2.6 |
| SOMT08T306-Z | 7.9 | 3.97 | 11.5 | 0.6 | 2.85 |
| SOMT09T308-Z | 9.25 | 3.97 | 12 | 0.8 | 3.81 |
| SOMT11T308-Z | 11.05 | 3.97 | 12 | 0.8 | 3.81 |
| SOMT130408-Z | 12.8 | 4.4 | 12 | 0.8 | 4.4 |
| SOMT150510-Z | 15 | 4.8 | 12 | 1 | 5.4 |
