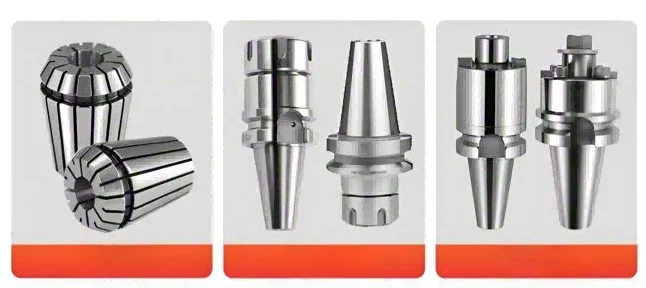

Key Features
- Premium Materials – 65Mn spring steel or 40Cr steel for maximum durability.
- High Accuracy – Precision tolerance of 0.005–0.008 mm for superior machining results.
- Strong Clamping Force – Ensures secure grip with no jitter during processing.
- High-Speed Stability – Maintains performance even under high RPM conditions.
- Durable & Wear-Resistant – Withstands thousands of clamping cycles without deformation.
Specifications
| Model | Length (mm) | Diameter (mm) | Clamping Range |
| ER11 | 18 | 11.5 | 1–7 mm |
| ER16 | 27.5 | 17 | 1–10 mm |
| ER20 | 31.5 | 21 | 1–13 mm |
| ER25 | 34 | 26 | 1–16 mm |
| ER32 | 40 | 33 | 1–20 mm |
| ER40 | 46 | 41 | 2–26 mm |
Advantages
- Made from 65Mn titanium-quenched steel for high hardness and durability.
- Excellent concentricity for improved surface finish.
- Shock-free machining for better tool life and workpiece quality.
- Compatible with various carbide end mills, milling cutters, and chucks.
How to Choose the Right ER Collet Size
Method 1 – Measure Length
- Use a vernier caliper to measure the height of the ER collet.
- Match the height to the specification chart (e.g., 40 mm length = ER32).
Method 2 – Measure Outer Diameter
- Use a vernier caliper to measure the outer diameter of the collet’s edge.
- Match it to the chart (e.g., 32.9 mm outer diameter = ER32).
Applications
- CNC milling machines
- Boring machines
- Drilling and tapping setups
- Engraving machines
- General precision machining
Why Choose Our ER Collets and Chucks
- Superior material hardness for long service life
- Tight clamping force to prevent workpiece slippage
- Compatible with a wide range of CNC machines and tooling
- Ideal for high-precision industrial applications
Ensure your machining accuracy with our premium ER collets and chucks.
Contact us today for bulk orders or OEM customization.
