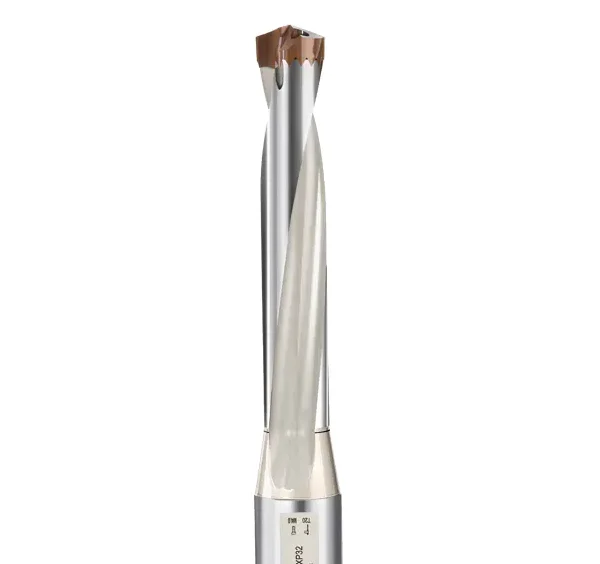

High-Performance Modular Drilling Solutions
Key Features
- Rigorously manufactured under ISO9001 quality standards

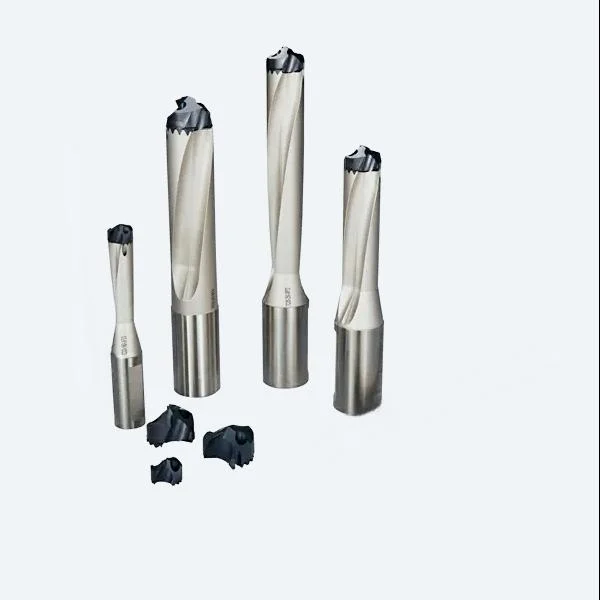

- Interchangeable heads from 12 mm to 33.5 mm and beyond
- Available in multiple lengths: 1.5D, 3D, 5D, 8D
- Made from premium materials with high wear resistance
- State-of-the-art HAAS machining centers and 5-axis grinding technology
- 100% inspection rate before shipment to ensure quality
Specifications
Hole Diameter Range (Example Models)
| Diameter (mm) | Model | Length (L) |
| 12 | CD-1200 | 9.10 mm |
| 13.5 | CD-1350 | 10.30 mm |
| 15 | CD-1500 | 11.00 mm |
| 17 | CD-1700 | 12.30 mm |
| And more |
Modular Tip Drill Bodies (Example)
| Diameter Range (mm) | Model | L2 | L1 | D1 |
| 12.0–12.49 | D03-120-C16 | 46 | 107 | 16 |
| 14.51–15.5 | D05-150-C20 | 89 | 159 | 20 |
| 24.81–25.8 | D08-250-C32 | 222 | 305 | 32 |
| 30.81–32.0 | D08-320-C32 | 276 | 361 | 32 |
| And more |
Why Choose Our Modular Tip Drills?
- Innovation Leadership: Pioneers in formalizing industry standards for modular tip and deep hole drills
- Patented Technology: Multiple inventions and utility patents
- Versatility: Wide range of diameters and lengths for varied applications
- Customization: MOQ as low as 1 piece for custom designs
Application Areas
- Automotive: Engine components and transmission parts
- Aerospace: Precision drilling in structural and high-strength materials
- General Engineering: Suitable for steel, stainless steel, cast iron, and non-ferrous metals
Enhance your drilling efficiency and flexibility with our modular tip indexable drills – engineered for performance and reliability.
