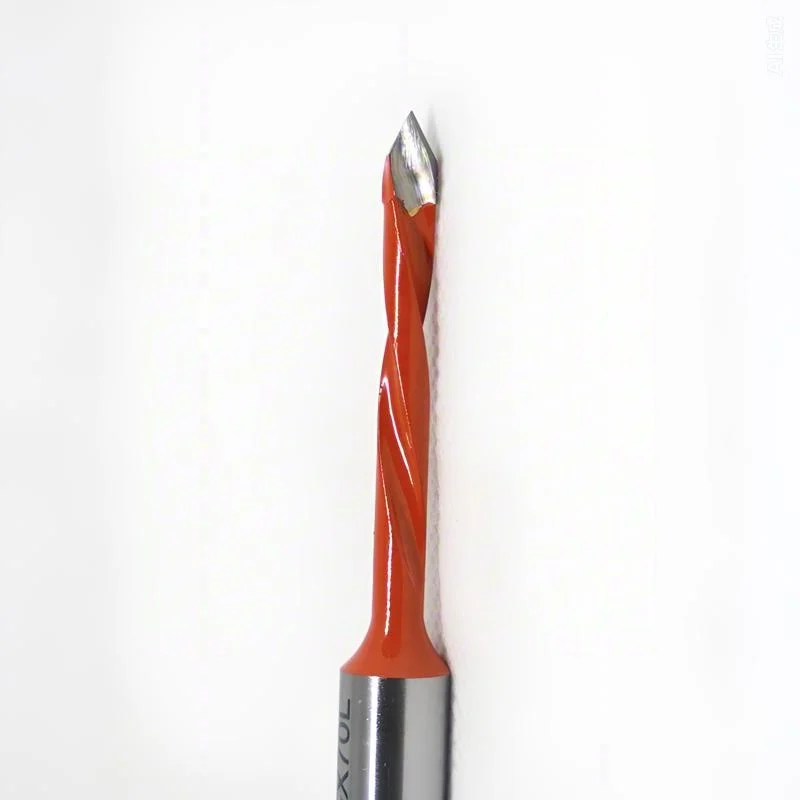

Main Features & Advantages
- Ultra-Fine Tungsten Carbide – Exceptional hardness and wear resistance.
- High-Strength Steel Body – Prevents bending and maintains accuracy.
- 2 Precision-Ground Cutting Edges (Z2) – Smooth drilling performance.
- Low Friction & Feed Force – Extends tool life and improves surface finish.
- Available in Multiple Sizes – From 4mm to 15mm diameter.
Specifications
70mm Overall Length
| Tool Code (RH) | Tool Code (LH) | D (mm) | b (mm) | d (mm) | L (mm) |
| H2V070040R | H2V070040L | 4 | 20 | 10 | 70 |
| H2V070045R | H2V070045L | 4.5 | 20 | 10 | 70 |
| H2V070050R | H2V070050L | 5 | 20 | 10 | 70 |
| … | … | … | … | … | … |
| H2V070150R | H2V070150L | 15 | 20 | 10 | 70 |
57.5mm Overall Length
| Tool Code (RH) | Tool Code (LH) | D (mm) | b (mm) | d (mm) | L (mm) |
| H2V057040R | H2V057040L | 4 | 20 | 10 | 57.5 |
| H2V057045R | H2V057045L | 4.5 | 20 | 10 | 57.5 |
| H2V057050R | H2V057050L | 5 | 20 | 10 | 57.5 |
| … | … | … | … | … | … |
| H2V057150R | H2V057150L | 15 | 20 | 10 | 57.5 |
Other overall lengths and shank sizes are available upon request.
Applications
- CNC boring machines for panel furniture manufacturing
- Drilling solid wood, MDF, laminated boards, and wood composites
- Ideal for both single-row and multi-row drilling operations
Recommended Operating Parameters
- Speed: 4500–6000 rpm
- Feed Speed: 2–8 m/min
- Max Drilling Depth:
- 57mm length – up to 20mm depth
- 70mm length – up to 33mm depth
How to Choose the Right Woodworking Drill
- Multi-row drills – Higher precision and automation, suitable for large-scale panel furniture production.
- Single-row drills – Lower automation, better suited for small production or auxiliary operations.
- Choose based on production scale, product requirements, and drilling precision needs.
Why Choose Us
- Over a decade of professional manufacturing experience in woodworking drills
- Fast delivery with stock available for standard sizes
- Custom manufacturing for unique dimensions and applications
- Global shipping and responsive technical support
- OEM and ODM are also welcome
